AK4356 Datasheet PDF – 192kHz, 24Bit, Six-Channel DAC

Part Number: AK4356

Function: 192kHz 24bit six-channel DAC for DVD-audio

Package: 44pin LQFP Type

Manufacturer: Asahi Kasei Microdevices

Pinouts:

AK4356 datasheet

Description

The AK4356 is a high performance six channels DAC corresponding to 96kHz sampling mode of DVD. Two channels of them can operate up to 192kHz sampling fully correspond to DVD-Audio standards. The AK4356 introduces the advanced multi-bit architecture for DS modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single Bit way.

Features

1. 128x Oversampling

2. Low Distortion Differential Output

3. Channel Independent Digital De-emphasis for 32, 44.1 & 48kHz sampling

4. Channel Independent Zero Detect Pin

5. Channel Independent Digital Attenuator with soft-transition

6. Soft Mute

7. 3-wire Serial Interface for Volume Control

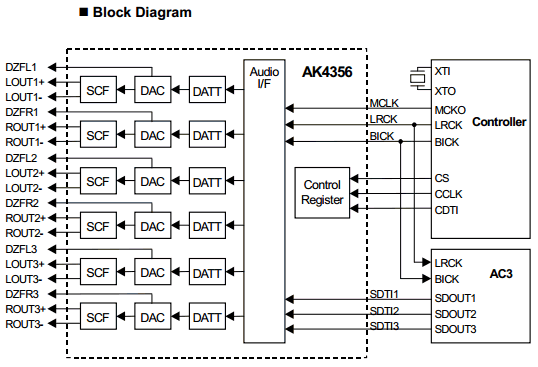

Block Diagram :

components

Other data sheets are available within the file: AK4356V, AK4356VQ
