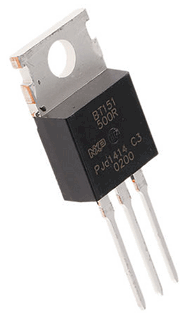

BT151 Datasheet PDF – BT151-500R, Thyristor, SCR – Philips

Part Number: BT151, BT151-500R

Function: 500V, 650V, 800V, Thyristor, SCR

Package: TO-220AB Type

Manufacturer: Philips Semiconductors, NXP


Description

This is thyristor, SCR.

Glass passivated thyristors in a plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.

Features

1. Good bidirectional blocking voltage capability

2. High surge current capability

3. High thermal cycling performance

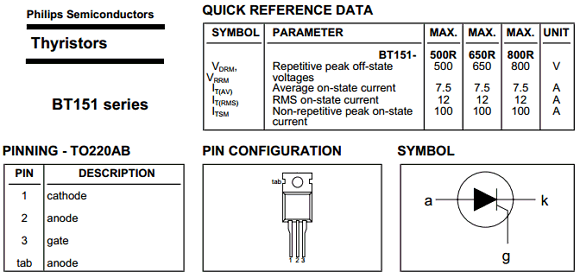

Pinouts:

Applications:

1. Ignition circuits

2. Motor control

3. Protection circuits

4. Voltage regulation

BT151 Datasheet PDF
