BTS7960 Datasheet PDF – 43A, High Current Half Bridge IC

BTS7960 is a fully integrated high current half-bridge motor driver IC featuring a p-channel high-side MOSFET, an n-channel low-side MOSFET, and an integrated driver.

Part Number: BTS7960B, BTS7960P

Function: 43A, High Current PN Half Bridge Novalith IC

Package: TO-263-7, TO-220-7 Type

Manufacturer: Infineon Technologies


Description

BTS7960 is part of the NovalithIC family containing three separate chips in one package: One p-channel highside MOSFET and one n-channel lowside MOSFET together with a driver IC, forming a fully integrated high current half-bridge.

It offers a typical 16mΩ path resistance, PWM operation up to 25kHz, adjustable slew rate, current sensing, and comprehensive protection functions including overcurrent, overtemperature, overvoltage, undervoltage, and short-circuit protection. The device is widely used in DC motor drives, H-bridge motor controllers, automotive electronics, robotics, and industrial motion control systems.

Features

• Fully integrated high current half-bridge motor driver
• Integrated p-channel high-side MOSFET and n-channel low-side MOSFET
• Typical path resistance of 16mΩ at 25°C
• PWM operation up to 25kHz with active freewheeling
• Typical current limitation of 43A
• Logic level control inputs for direct microcontroller interface
• Integrated current sense and diagnostic status flag
• Adjustable slew rate for reduced EMI
• Automatic dead time generation
• Overcurrent, short-circuit, overtemperature, overvoltage, and undervoltage protection
• Low quiescent current of typically 7µA

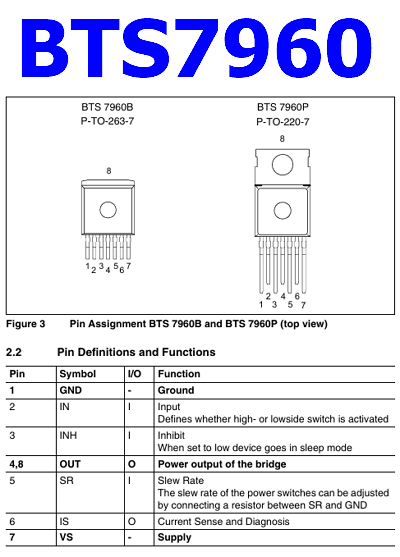

Pinout

Absolute Maximum Ratings (Tc = 25 °C)

Working Principle

• The BTS7960 integrates a high-side p-channel MOSFET and a low-side n-channel MOSFET to form a complete half-bridge for driving inductive loads
• The integrated driver accepts logic level control signals from a microcontroller and automatically manages gate timing with built-in dead time generation
• PWM control regulates motor speed while active freewheeling improves efficiency and reduces switching losses
• The integrated current sensing function provides diagnostic feedback for monitoring motor load conditions
• Protection circuits continuously monitor operating conditions and automatically shut down the device during overcurrent, short-circuit, overtemperature, overvoltage, or undervoltage events

Block Diagram

Design Notes

• Use adequate PCB copper area or a heatsink for high current applications to improve thermal performance
• Place low ESR bypass capacitors close to the supply pins to minimize voltage transients during PWM switching
• Adjust the slew rate when necessary to achieve the best balance between switching performance and EMI
• Monitor the diagnostic output to detect fault conditions and improve system reliability
• Combine two BTS7960 devices to implement a full H-bridge for bidirectional DC motor control

How to Choose This Part

• Select the BTS7960B for applications requiring high current half-bridge motor control with integrated protection features
• Choose this device when direct interfacing with 3.3V or 5V microcontrollers is required
• Verify that the motor current remains within the device operating capability and thermal limits
• Consider the package type according to assembly requirements and heat dissipation needs
• Use multiple BTS7960P devices for H-bridge or three-phase motor drive configurations when bidirectional or multi-phase control is required

Applications

• High current DC motor drivers
• H-bridge motor control systems
• Automotive motor control
• Robotic drive systems
• Industrial motion control equipment
• Electric actuators
• Battery-powered motor controllers

Alternative / Equivalent Products

• BTS7970
• VNH2SP30
• VNH5019A
• LMD18200
• BTN7971B
