C3459 Datasheet PDF – 800V, 4.5A, NPN Transistor – Sanyo

Part Number: C3459

Function: 4.5A, 800V, NPN Triple Diffused Planar Silicon Transistor

Package: TO-3PB Type

Manufacturer: SANYO (Panasonic)

Pinouts:

C3459 datasheet



Description

1. High breakdown voltage and high reliability.
2. Fast switching speed (t f: 0.1µs typ).
3. Wide ASO.
4. Adoption of MBIT process.

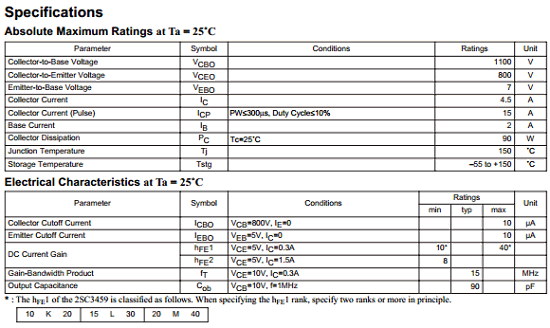

Absolute Maximum Ratings at Ta = 25°C

1. Collector-to-Base Voltage : VCBO = 1100 V
2. Collector-to-Emitter Voltage : VCEO = 800 V
3. Emitter-to-Base Voltage : VEBO = 7 V
4. Collector Current : IC = 4.5 A
5. Collector Current (Pulse) : ICP = 15 A
6. Base Current : IB = 2 A
7. Collector Dissipation : PC = 90 W
8. Junction Temperature: Tj = 150°C
9. Storage Temperature : Tstg = – 55 to +150°C

components

Applications

1. Switching Regulator

Other data sheets are available within the file: 2SC3459
