C9015 Datasheet – (-)50V, (-)150mV, PNP Transistor, KTC9015

This is PNP Transistor.

Part Number: C9015, KTC9015

Function: -50V, -150mA, Silicon PNP Transistor

Package: TO-92 Type

Manufacturer: KEC

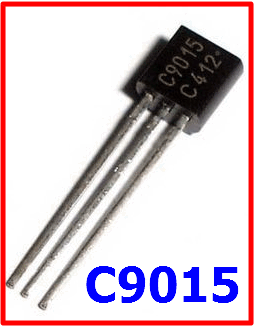

C9015 pnp transistor

Description

This is -50V, -150mA, Epitaxial Planar PNP Transistor.



Features

1. Excellent hFE Linearity : hFE( Ic=0.1mA)/ hFE( Ic=2mA) = 0.95(Typ.)

2. Low Noise : NF =  1dB(Typ.) at f = 1kHZ

3. Complementary to KTC9014

Pinout

C9015 datasheet pdf pinout



Maximum Ratings ( Ta = 25°C )

1. Collector-Base Voltage: Vcbo = – 50V

2. Collector-Emitter Voltage: Vceo = – 50V

3. Emitter-Base Voltage : Vebo = – 5V

4. Collect Current: Ic = – 150mA

5. Eimitter Currnet : Ie = 150 mA

6. Collector Power Dissipation : Pc = 625 mW



Application:

1. General Purpose

2. Switching





C9015 Datasheet
