C5885 Datasheet PDF – 1500V, 6A, NPN Transistor – Panasonic

Posted on by pinout

This is one of the transistor types.

Part Number: C5885, 2SC5885

Function: 1500V, 6A, NPN Transistor

Package: TO-220 Type

Manufacturer: Panasonic


C5885 transistor

Description

THIS IS 1500V, 6A, SILICON NPN TRIPLE DIFFUSED MESA TYPE TRANSISTOR.

Features

1. High Voltage  : VCBO= 1500 V

2. Low Saturation Voltage  : VCE (sat)= 3 V (Max.)

3. High Speed  : tf= 0.15 µs (Typ.)

4. Collector Metal (Fin) is Fully Covered with Mold Resin.

5. Collector−Emitter Voltage : VCEO = 1500 V

6. Emitter−Base Voltage : VEBO = 5 V

7. Base Current  : IB = 7 A

8. Collector Power Dissipation : PC = 60 W

Pinout

C5885 datasheet pdf



Applications:

1. Horizontal deflection output for TV, CRT monitor

2. HIGH SPEED SWITCHING

3. DISPLAY, COLOR TV





C5885 Datasheet PDF




Related articles across the web

MIP3E5MY Datasheet PDF – 700V, 1.1A, MOSFET, Transistor

Posted on by pinout

Part Number: MIP3E5MY

Function: 700V, 1.1A, MOSFET

Package: TO-220 Type

Manufacturer: Panasonic

Image:

MIP3E5MY image

Description

This is 700V, 1.1A, MOSFET, silicon MOS-type switching device (MOSFET-style / MOSIC) packaged in TO-220 format, made by Panasonic.

Features

• Worldwide input support, further reducing power consumption during light load
(50% reduction in the maximum than MIP2ExD series)

• Various protection circuit Built by the possible real-time protection

• Internal soft-start



Absolute Maximum Ratings (Ta = 25°C)

1. Drain voltage : VD = 700 V

2. Control voltage : VC = 8 V

3. Drain current: ID = 1.1 A

4. Peak drain current : IDP = 1.7 A

5. Control current : IC = 0.1 A

6. Channel temperature: Tch = 150 °C

7. Storage temperature: Tstg = -55 to +150 °C

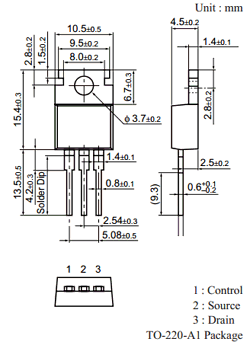

Pinout

MIP3E5MY Datasheet



Applications

1. for controlling the switching power supply

MIP3E5MY Datasheet PDF
