CD6303CA Datasheet – 171V, 1.5kW, TVS, Diode, Rectifier

Part Number: CD6303CA

Function: 171V, 1.5kW, Transient Voltage Suppressor, Diode, Rectifier

Package: Disk Type

Manufacturer: Microsemi Corporation

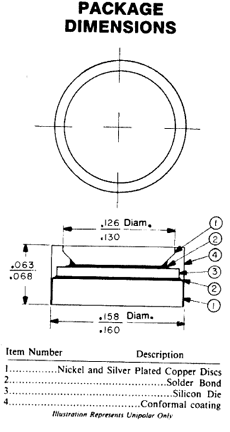

Image:

CD6303CA datasheet



Description

This is 171V, 1.5kW, Diode (Rectifier).

Features

1. Economical

2. 1500 Watts peak pulse power dissipation

3. Stand-Off voltages from 5.0V to 171V

4. Uses thermally passiviated die design

5. 1.5KCD6.8 thru 1.5KCD200A, CD5908 and CD6267 thru CD6303A



Applications:

1. This TAZ* series has a peak pulse power rating of 1500 watts for one milisecond.

2. It can protect integrated circuits, hybrids, COMS, MOS and other voltage sensitive componets.

Other data sheets are available within the file:

CD6267A, CD6267C, CD6267CA, CD6268, CD6268C



CD6303CA Datasheet PDF Download


CD6303CA pdf
