CXA2134Q Datasheet PDF – Audio Multiplexing Decoder

Part Number: CXA2134Q

Function: US Audio Multiplexing Decoder

Package: 48 pin QFP (Plastic)

Manufacturer: SONY SEMICONDUCTOR

Images :

CXA2134Q datasheet

Description

The CXA2134Q is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C bus. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction and sound processor. Various kinds of filters are built in this IC. Adjustment, mode control and sound processor control are all executed through I2C bus.

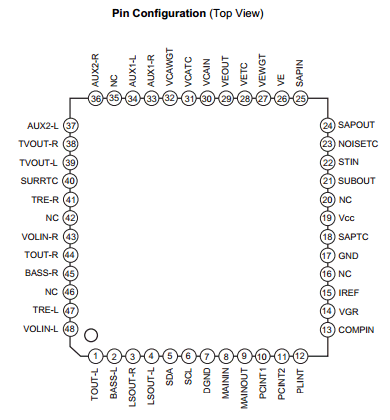

Pinouts:

components

Features

1. Alignment-free VCO and filter

2. Audio multiplexing decoder dbx noise reduction decoder sound processor

3. Input level, separation adjustments and each mode control are possible through I2C bus.

Applications:

1. TV, VCR and other decoding systems for US audio multiplexing TV broadcasting
