D2578 Datasheet PDF – 800V, 8A, NPN Transistor – Sanyo

Part Number: D2578

Function: 8A, 800V, NPN Triple Diffused Planar Silicon Transistor

Package: TO3PML Type

Manufacturer: SANYO (Panasonic)

Pinouts:

D2578 datasheet

Description

1. High speed.
2. High breakdown voltage (VCBO=1500V).
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode.

Absolute Maximum Ratings at Ta = 25°C

1. Collector-to-Base Voltage : VCBO = 1500 V
2. Collector-to-Emitter Voltage : VCEO = 800 V
3. Emitter-to-Base Voltage : VEBO = 6 V
4. Collector Current : IC = 8 A
5. Collector Current (pulse) : ICP = 20 A
6. Collector Dissipation : PC = 3.0 W
7. Junction Temperature: Tj = 150°C
8. Storage Temperature : Tstg = -55 to +150°C

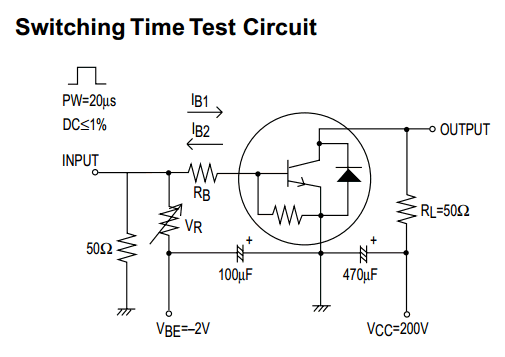

Test Circuit

components

Applications

1. Color TV Horizontal Deflection Output

Other data sheets are available within the file: 2SD2578
