DBL102G Datasheet PDF – 100V, 1A, Rectifier, Diode

Part Number: DBL102G

Function: 100V, Single Phase 1.0 A / Glass Passivated Bridge Rectifier

Package: DIP 4 Pin Type

Manufacturer: Taiwan Semiconductor, Multicomp

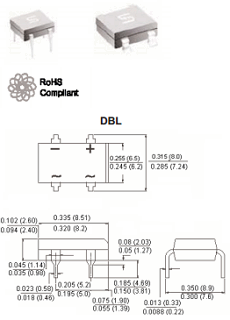

Image and Pinouts:

DBL102G datasheet



This is 100V, 1A, Diode.


• Glass passivated junction.

• Ideal for printed circuit board.

• Reliable low cost construction utilizing moulded plastic technique.

• High temperature soldering guaranteed: 260°C/10 seconds/0.375 inch (9.5mm) lead length at 5 lbs., (2.3kg) tension.

• Small size, simple installation.
pure tin plated terminal, lead free. leads solderable per MIL-STD-202, Method 208.

• High surge current capability.

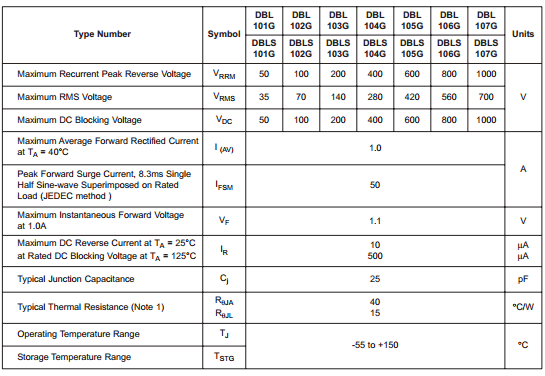

Maximum Ratings and Electrical Characteristics


Other data sheets are available within the file:

DBL101G, DBL102, DBL103G, DBL104G, DBL105G, DBL107G
