HHC66AT73 Datasheet PDF – PCB Relay, 5 Pin – Clion

Part Number: HHC66AT73, HHC66A(T73)

Function: PCB Relay

Package: PCB 5 Pin DIP Type

Manufacturer: Clion.cn

Images :

HHC66AT73 datasheet

Description

This is Miniature PCB Relay.

Specification :

1. Demension : 19mm x 15.5mm x 16mm

2. Contact resistance : ≤ 100mΩ

3. Contact Material : Silver Alloy

4. Coil Voltage : DC 3 ~ 48 V ( Customize allowed )

5. Pick-up time : ≤ 10ms

6. Release time : ≤ 5ms

7. Ambient temperature : -55°C ~70°C

8. Ambient humidity : 35% – 80% RH

9. Atmospheric pressure : 86 – 106KPa

10. Shock resistance : 10G (sinusoidal half-wave pulse : 11ms)

11. Vibration resistance : 10-55Hz (double amplitude: 1.5mm)

12. Weight : Approximate 10g

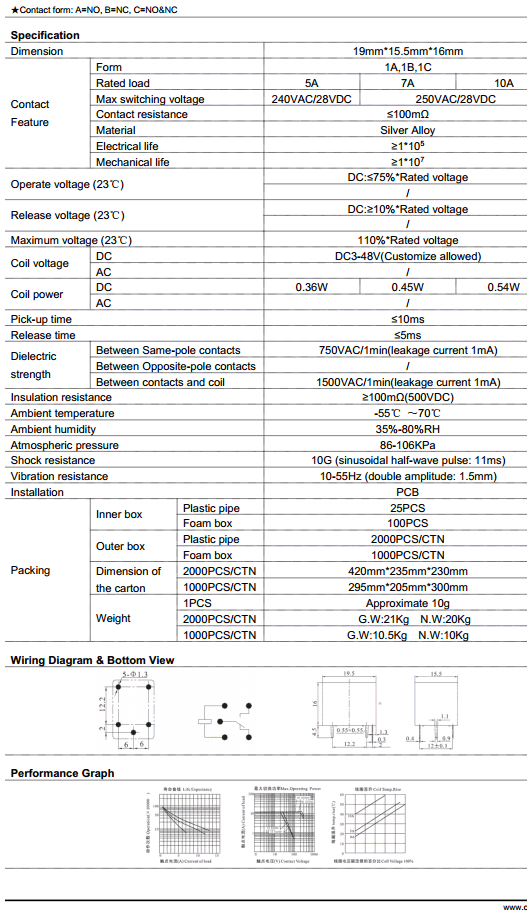

components



HHC66AT73 Datasheet PDF Download


HHC66AT73 pdf

Other data sheets are available within the file:

HHC66A(T73)-10A-1C-12VDC, HHC66A(T73)-5A-1C-12VDC,

HHC66A(T73)-7A-1C-12VDC, HHC66A-1Z-09VDC, HHC66A-1Z-12VDC
