IDT7280 Datasheet – 256 x 9, Dual FIFO Memory ( PDF )

Part Number: IDT7280

Function: CMOS DUAL ASYNCHRONOUS FIFO

Package: TSSOP 56 Pin Type

Manufacturer: IDT ( www.idt.com )

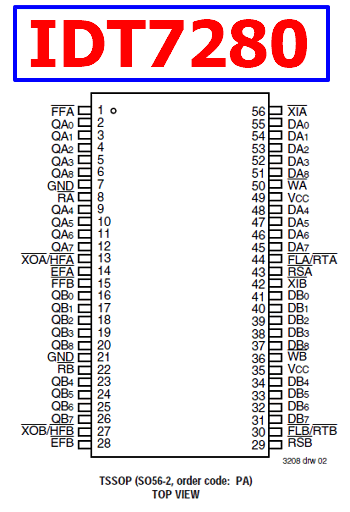

Image and pinouts :

IDT7280 datasheet pinout

Description

The IDT7280 / 7281 / 7282 / 7283 / 7284 / 7285 are dual-FIFO memories that load and empty data on a first-in/first-out basis. These devices are functional and compatible to two IDT7200/7201/7202/7203/7204/7205 FIFOs in a single package with all associated control, data, and flag lines assigned to separate pins. The devices use Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth.

Features

• The IDT7280 is equivalent to two IDT7200 256 x 9 FIFOs
• The IDT7281 is equivalent to two IDT7201 512 x 9 FIFOs
• The IDT7282 is equivalent to two IDT7202 1,024 x 9 FIFOs
• The IDT7283 is equivalent to two IDT7203 2,048 x 9 FIFOs
• The IDT7284 is equivalent to two IDT7204 4,096 x 9 FIFOs
• The IDT7285 is equivalent to two IDT7205 8,192 x 9 FIFOs

• Asynchronous and simultaneous read and write

• Offers optimal combination of data capacity, small foot print and functional flexibility

• Ideal for bi-directional, width expansion, depth expansion, bus-matching, and data sorting applications

• Status Flags: Empty, Half-Full, Full

• Auto-retransmit capability

• High-performance CMOS technology





Other data sheets are available within the file: IDT7282, IDT7283, IDT7284, IDT7285
