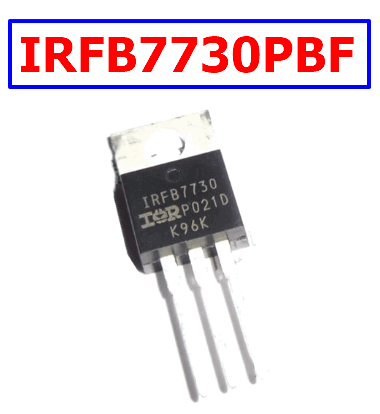

Part Number: IRFB7730
Function: 75V, HEXFET Power MOSFET
Package: TO-220AB Type
Manufacturer: Infineon Technologies, International Rectifier
Description
IRFB7730PBF is an N-channel MOSFET used in high-voltage and high-current applications, and belongs to the TO-220AB package for easy installation. This MOSFETis widely used in a variety of fields including automotive, power supplies, motor control, and switching circuits.
Pinouts
Features
1. Improved gate, avalanche and dynamic dV/dt ruggedness
2. Fully characterized capacitance and avalanche SOA
3. Enhanced body diode dV/dt and dI/dt capability
4. Lead-free, RoHS compliant
Application
1. Brushed motor drive applications
2. BLDC motor drive applications
3. Battery powered circuits
4. Half-bridge and full-bridge topologies
5. Synchronous rectifier applications
6. Resonant mode power supplies
7. OR-ing and redundant power switches
8. DC/DC and AC/DC converters
9. DC/AC inverters
Other data sheets are available within the file: IRFS7730PbF, RFSL7730PbF
