This is one of the types of MOSFETs and is a kind of transistor.

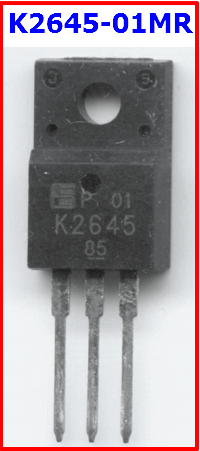

Part Number: K2645-01MR, 2SK2645-01MR
Function: N-channel MOSFET ( 600V, 9A, 500W )
Package: TO-220 Type
Manufacturer: Fuji Electric
Description
This is 600V, 9A, N-Channel Silicon Power MOSFET.
Features
1. High Speed Switching
2. Low On-Resistance
3. No Secondary Breakdown
4. Low Driving Power
5. High Voltage
6. VGS = ± 30V Guarantee
7. Repetitive Avalanche Rated
Absolute maximum ratings
1. Drain-source voltage : Vds = 600 V
2. Continuous drain current : Id = ± 9 A
3. Pulsed drain current : Id(puls) = ± 32 A
4. Gate-source voltage : Vgs = ± 32 A
5. Max. power dissipation : Pd = 50 W
Pinout
Applications of K2645-01MR
1. Switching Regulators
2. UPS
3. DC-DC converters
4. General Purpose Power Amplifier
K2645-01MR Datasheet
