KP11N60 Transistor – 600V, 11A, Datasheet PDF – MOSFET

The KP11N60 is Super Junction MOSFET. This is kind of a transistor.

Part Number: KP11N60

Function: 600V, 11A, N-Channel MOSFET

Package: TO-220IS Type

Manufacturer: KEC

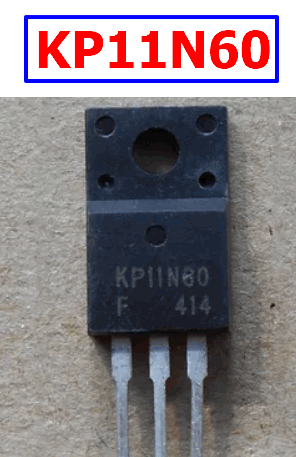

KP11N60 transistor

Description

This is 600V, 11A, N-CHANNEL MOS FIELD EFFECT TRANSISTOR.

This Super Junction MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics. It is mainly suitable for active power factor correction and switching mode power supplies.

Pinouts:
KP11N60 datasheet



Features

1. VDSS=600V, ID=11A

2. Drain-Source ON Resistance : RDS(ON)(Max) = 0.38Ω@VGS=10V

3.  Qg(typ.)= 20nC



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 600 V

2. Gate to source voltage: VGSS = ± 30 V

3. Drain current: ID =  11 A

4. Drain power dissipation : PD = 34.7 W

5. Maximum Junction temperature : Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



Other data sheets are available within the file: KP11N60F, KP11N60D
