Part Number: LM20A21
Function: 20 Char x 2 Line Type LCD Module (FA/POS/Measuring instruments)
Outline dimensions : 115 (w) x 35 (h) x 11 max (d) (mm)
Manufacturer: Sharp Electronics

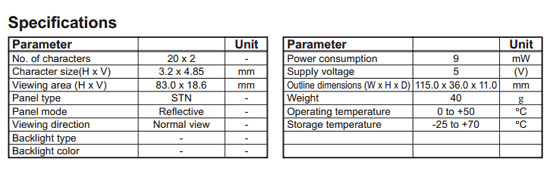

Image:
Description
The LM20A21, dot-matrix LCD unit consists of a 5×7-dot 20-character 2-line dot-matrix LCD panel, LCD driver and controller LSI fabricated on a single PCB. Incorporating mask ROM-based character generator and display data RAM in the controller LSI, the unit can efficiently display the desired charaters under microprocessor control.
Features
0. The LCD of the unit is STHC ( Super Twisted High Contrast ) gray type.
1. 20 characters x 2 lines
2. STN LCD (Reflective)
3. 5 x 7 dots with cursor
4. Suitable for telephone & facsimile etc.
5. The unit operates from a single 5V power supply.
Other data sheets are available within the file: 20A21
LM20A21 Datasheet PDF Download
