LM2941CT Datasheet PDF – 1A, Adjustable Regulator

Part Number: LM2941CT

Function: 1A, Adjustable Regulator

Package: TO-220 Type

Manufacturer: National Semiconductor



The LM2941 positive voltage regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN −VOUT≤3V).

Designed also for vehicular applications, the LM2941 and all regulated circuitry are protected from reverse battery installations or two-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. Familiar regulator features such as short circuit
and thermal overload protection are also provided.

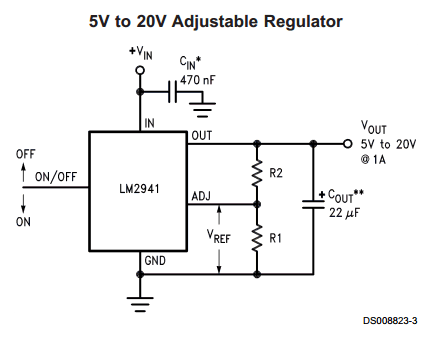

Application Circuits :

LM2941CT Datasheet PDF


1. Output voltage adjustable from 5V to 20V

2. Dropout voltage typically 0.5V @ IO = 1A

3. Output current in excess of 1A

4. Trimmed reference voltage

5. Reverse battery protection

Other data sheets are available within the file: LM2941C, LM2941T, LM2941S, LM2941CS

LM2941CT Datasheet PDF
