MCH6353 Datasheet PDF – 12V, 6A, P-Ch, MOSFET – Onsemi

Part Number: MCH6353

Function: Power MOSFET -12V, -6.0A, 35 mOhm, Single P-Channel MCPH6

Package: MCPH6, SOT-363 Type

Manufacturer: On Semiconductor

Image :

MCH6353 image

Description

The MCH6353 is P-Channel Power MOSFET -12V, -6.0A, 35mΩ, Single MCPH6.



Features

1. Ultra Low on resistance

2. 1.5V drive

3. Halogen free compliance

4. Built-in G-S protection diode

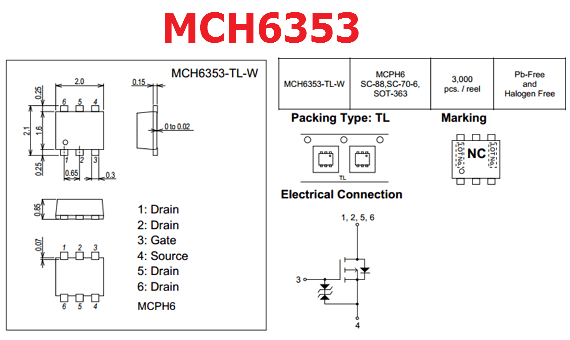

Pinout:

MCH6353 datasheet pinout

Benefits :

1. Reduces power consumption

2. Drive at low voltage

3. Environmental consideration

5. Stronger to ESD



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = – 12 V

2. Gate to source voltage: VGSS = ± 10 V

3. Drain current: ID = – 6 A

4. Drain Power Dissipation: Pd = 1.4 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



Official Homepage: https://www.onsemi.com/PowerSolutions/product.do?id=MCH6353



MCH6353 Datasheet PDF Download
