MIP0223SY Datasheet – Vd = 700V, MOS IC, IPD – Panasonic

Part Number: TM1650

Function: Silicon MOS IC ( Intelligent Power Devices )

Package: TO-220 Type

Manufacturer: Panasonic

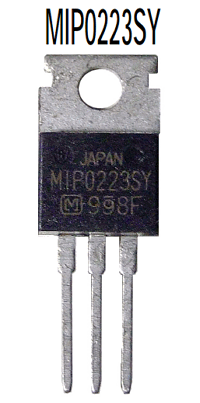

Image:

Features
1. Single chip IC with high breakdown voltage power MOS FET and CMOS control circuits
2. Allowing to input worldwide mains (AC 85 to 274V)
3. A pulse-by-pulse overcurrent protection circuit and a timer auto restart circuit are integrated.

Applications
1. Switching power supply (to 90W)
2. AC adaptor
3. Battery charger

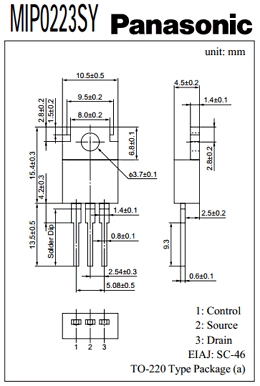

Pinout

MIP0223SY Datasheet PDF Download
