MMDF2C03HD Datasheet PDF – 2A, 30V, Power MOSFET

Part Number: MMDF2C03HD

Function: 2A, 30V, Power MOSFET

Package: SO-8 Pin Type

Manufacturer: ON Semiconductor

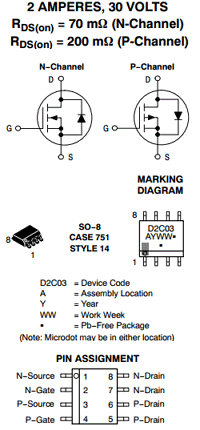

Pinouts:

MMDF2C03HD datasheet



Description

These miniature surface mount MOSFETs feature ultra low Rds(on) and true logic level performance. They are capable of withstanding high energy in the avalanche and commutation modes and the drain-to-source diode has a very low reverse recovery time. These devices are designed for use in low voltage, high speed switching applications where power efficiency is important. Typical applications are dc-dc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones. They can also be used for low voltage motor controls in mass storage products such as disk drives and tape drives. The avalanche energy is specified to eliminate the guesswork in designs where
inductive loads are switched and offer additional safety margin against unexpected voltage transients.

Features

• Ultra Low RDS(on)Provides Higher Efficiency and Extends Battery Life

• Logic Level Gate Drive −Can Be Driven by Logic ICs

• Miniature SO-8 Surface Mount Package −Saves Board Space

• Diode Is Characterized for Use In Bridge Circuits

• Diode Exhibits High Speed, With Soft Recovery

• IDSS Specified at Elevated Temperature

• Avalanche Energy Specified

MMDF2C03HD Datasheet PDF Download


MMDF2C03HD pdf

Other data sheets are available within the file: MMDF2C03, MMDF2C03HDR2G
