MT6166V Datasheet PDF – Moblie Phone Chip IC – MediaTek

Part Number: MT6166V

Function: RF transceiver, MTK Moblie Phone Chip IC

Package: TFBGA 104 Pin type

Manufacturer: MediaTek

Image :

MT6166V Description

This is MediaTek MTK mobile phone chip IC.

The MT6166V receiver section fully integrates all RF and baseband signal processing, and it includes Low Noise Amplifiers, Down-converting Mixers, Baseband Amplifiers/Low Pass Filters, Baseband Output D.C offset Correction, Receive Local Oscillator

(LO) Generator. The transmit section of the MT6166 radio implements a translation loop modulator. This consists of a quadrature modulator, high speed phase-frequency detector (PFD) with charge pump output, loop filter, TX VCO and a feedback down converting mixer.

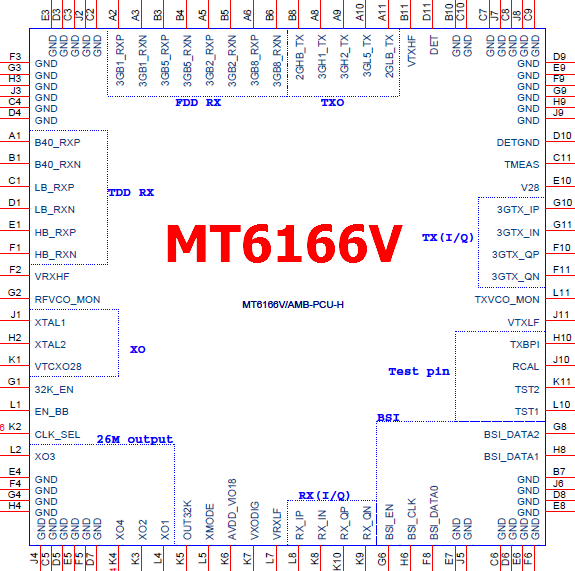

Pinout

The MT-6166 is a RF transceiver targeted at high speed 2G/3G-FDD multi-mode smart phone and tablet computers implant in 40nm CMOS.The RF transceiver function is fully integrated.

Features

1. Full multi-mode RF solution (GGE/WCDMA/TDSCDMA) through to 3GPP Release 8 (HSPA+)

2. Direct Conversion (3G), Two Point Modulation (TPM) for GMSK and Small Signal Polar for 8-
PSK

3. Hybrid Direct-Conversion (3G) / Low-IF (GGE, DC-HSDPA) receiver

4. Low supply current & operation directly from DC-DC converter

Officail Site :  https://www.mediatek.com/

MT6166V Datasheet
