OPA180 Datasheet PDF – OP Amp Single Zero Drift Amplifier

Part Number: OPA180

Function: 0.1-μV/°C Drift, Rail-to-Rail Output, 36-V, Zero-Drift Operational Amplifier

Package: VSSOP-8 and SOIC-8, SOIC-14 and TSSOP-14 Type

Manufacturer: Texas Instruments

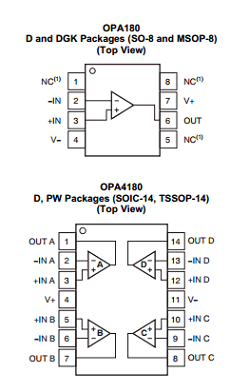

Image and Pinouts:

OPA180 datasheet


The OPA180, OPA2180, and OPA4180 operational amplifiers use zero-drift techniques to simultaneously provide low offset voltage (75 μV), and near zero-drift over time and temperature.
These miniature, high precision, low quiescent current amplifiers offer high input impedance and rail-to-rail output swing within 18 mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range of 4.0 V to 36 V (±2 V to ±18 V).

The dual version is offered in VSSOP-8 and SOIC-8 packages. The quad is offered in SOIC-14 and TSSOP-14 packages. All versions are specified for operation from –40°C to 105°C.


• Low Offset Voltage: 75 μV (Maximum)
• Zero-Drift: 0.1 μV/°C
• Low Noise: 10 nV/√Hz
• Very Low 1/f Noise
• Quiescent Current: 525 μA (Maximum)
• Wide Supply Range: ±2 V to ±18 V
• Low Bias Current: 250 pA (Typical)
• RFI Filtered Inputs


• Bridge Amplifiers
• Strain Gauges
• Test Equipment
• Transducer Applications
• Temperature Measurement
• Electronic Scales
• Medical Instrumentation
• Resister Thermal Detectors

Official Homepage: https://www.ti.com/product/opa180
