Part Number: OZ9976GN

Function: Pulse Width Modulation (PWM) controller, LCD TV Controller

Package: SOP-16 Type

Manufacturer: OZMICRO

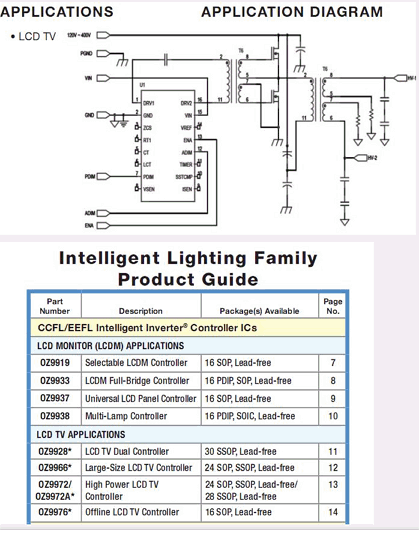

Image :


The OZ9976GN is a high efficiency, Pulse Width Modulation

(PWM) controller designed for off line LCD backlight application. It achieves high efficiency power conversion with minimal switching loss using Zero Current Switching (ZCS) technology. OZ9976 applications can operate under fixed or variable operating frequency with ZCS technology.

The minimum operating frequency can be set by either an external RC network or operate in self-oscillating mode. The intelligent operating frequency management circuitry extends Cold Cathode Fluorescent Lamp (CCFL) lifetime and offers design flexibility.



1. Offline Inverter Controller (IPB)

2. Supports both fixed and variable frequency applications

3. Half-bridge or push-pull topology

4. Directly drives pulse transformers

5. Dedicated pins for Analog and LPWM dimming

6. User-defined minimum operating frequency

7. User-defined striking frequency range

8. Open-load, over-voltage, and under-voltage lockout protection

9. User-defined striking and shutdown delay timers

10. Soft start function


OZ9976GN Datasheet

Other data sheets are available within the file: 0Z9976GN, OZ9976
