PA3001-A Datasheet PDF – FM IF System, Pioneer, DIP 16

Part Number: PA3001-A

Function: FM IF System / Silicon Monolithic Bipolar Linear

Package: DIP 16 Pin Type

Manufacturer: Pioneer


PA3001-A datasheet



This is IC for FM IF System.

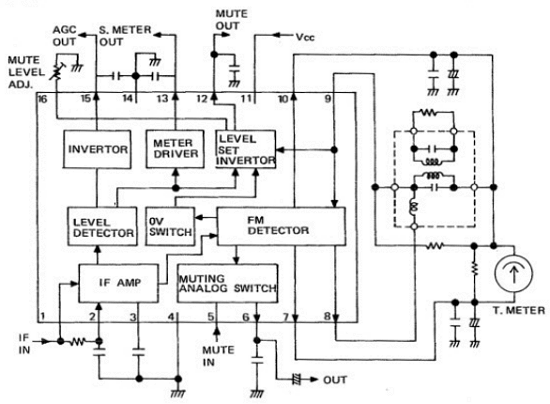

Application and pinouts :


1. Input
2. Bais
3. Bias
4. GND
5. Mut in
6. Output
7. T.Mut
8. Quad out
9. Quad In
10. DC ref
11. Vcc
12. Mute Auto Out
13. S.Met
14. GND
15. AGC
16. Mute Level Adj

PA3001-A Datasheet PDF Download

PA3001-A pdf

Other data sheets are available within the file: PA-3001-A, PA3001A
