RTM876-660 Datasheet – SSOP56, Frequency Generator – Realtek

This post explains for the semiconductor RTM876-660.

The Part Number is RTM876-660.

The function of this semiconductor is 56 pin single-chip frequency generator.

Manufacturer: Realtek Semiconductor Corp ( http://www.realtek.com.tw )

Preview images :

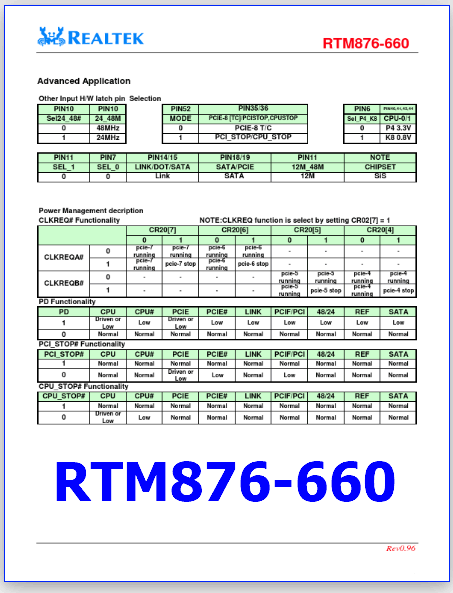

1 page
RTM876-660 image

Description

RTM876-660 is a 56 pin single-chip frequency generator.

RTM876-660 Support Pin Features
• 2 – Differential pairs push-pull CPU @0.8V or @3.3V
• 6 – Differential pairs push-pull PCI-E @0.8V
• 1 – Differential pairs push-pull SATA @0.8V or PCI-E @0.8V
• 1 – Differential pairs push-pull DOT96/ SATA@0.8V or 2-Link @3.3V
• 7 – PCI @3.3V
• 2 – 48MHz @3.3V
• 3 – REF @3.3V, 14.318MHz

Others Features
• Programmable frequency with CPU/PCIE/AGP/PCI
• CPU working range support from 100MHz to 400MHz
• Independent clock group Spread spectrum for EMI control
• Power Management function support
• Watchdog programmable time base reset output
• 4-steps programmable drive strength
• 16-steps programmable skew adjustment with 75p resolution
• 4-stages dynamic frequency switch with innovative AFM over-clock profile
• PCIE clock phase jitter < 86ps.  […]


2 page
pinout

RTM876-660 Datasheet
