SN74ABT2952ADW Datasheet PDF – Octal BUS Transceiver

Part Number: SN74ABT2952ADW

Marking : ABT2952A

Function: OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS

Package: SOIC 24 Pin Type

Manufacturer: Texas Instruments

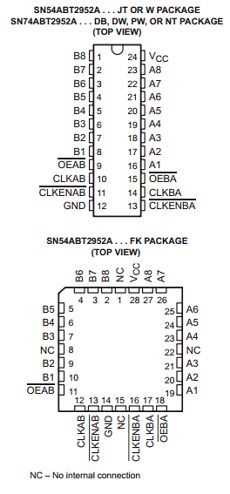

Pinouts:

SN74ABT2952ADW datasheet



Description

The SN74ABT2952ADW transceivers consist of two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENABor CLKENBA) input is low. Taking the output-enable (OEABor OEBA) input low accesses the data on either port.

To ensure the high-impedance state during power up or power down, OEshould be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.



Features

1. State-of-the-Art EPIC-IIBE BiCMOS Design Significantly Reduces Power Dissipation

2. Two 8-Bit Back-to-Back Registers Store Data Flowing in Both Directions

3. Noninverting Outputs

4. Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C

5. Latch-Up Performance Exceeds 500 mA Per JESD 17



SN74ABT2952ADW Datasheet PDF Download


SN74ABT2952ADW pdf

Other data sheets are available within the file:

SN54ABT2952A, SN74ABT2952A, SN74ABT2952, 74ABT2952, 54ABT2952
