Part Number: SN74ALVC244
Function: OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
Package: SOIC, TSSOP 20 Pin, QFN 20 Pin type
Manufacturer: Texas Instruments

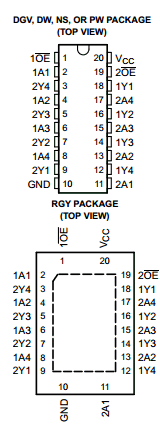

Pinouts:
Description
This octal buffer/line driver is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVC244 is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Features
1. Operates From 1.65 V to 3.6 V
2. Max tpd of 2.8 ns at 3.3 V
3. ±24-mA Output Drive at 3.3 V
4. Latch-Up Performance Exceeds 250 mA Per JESD 17
5. ESD Protection Exceeds JESD 22
SN74ALVC244 Datasheet PDF Download
Other data sheets are available within the file:
74ALVC244, SN74ALVC244DGVR, SN74ALVC244DGVRG4, SN74ALVC244DW, SN74ALVC244DWG4
