SN8P2501BPB Datasheet PDF – 8-Bit Micro-Controller – Sonix

Part Number: SN8P2501BPB

Function: SONiX 8-Bit Micro-Controller

Package: DIP 14 Pin

Manufacturer: Sonix Technology Co., Ltd

Image :

SN8P2501BPB image

Description

The SN8P2501BPB is a RISC-like high performance and low power consumption 8-bit micro-controller. One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation power.

Also, the high EFT (Electrical Fast Transients) protection capability let this device is suitable for high noisy industrial application.

The device is designed with the excellent IC structure including the program memory up to 1K-word OTP ROM, data memory of 48-bytes RAM, Two 8-bit timer (T0, TC0), a watchdog timer, three interrupt sources (T0, TC0, INT0), and 4-level stack buffers.

Pinout

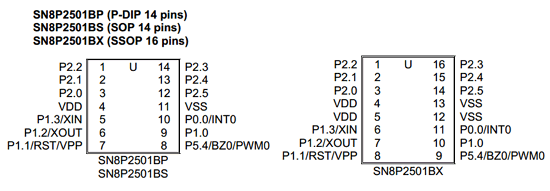

SN8P2501BPB Datasheet Pinout

Features of SN8P2501BPB

1. Memory configuration
(1) OTP ROM size: 1K * 16 bits.
(2) RAM size: 48 * 8 bits.
(3) Four levels stack buffer

2. Three interrupt sources
(1) One internal interrupts: T0, TC0
(2) One external interrupts: INT0

Other data sheets are available within the file: SN8P2501A, SN8P2501B, SN8P2501BPDG, SN8P2501BSB
