STPR1620CT Datasheet – 200V, RECOVERY RECTIFIER DIODE

Part Number: STPR1620CT

Function: ULTRA-FAST RECOVERY RECTIFIER DIODE

Package:  D2PAK, I2PAK or TO-220AB

Manufacturer: ST

Images:

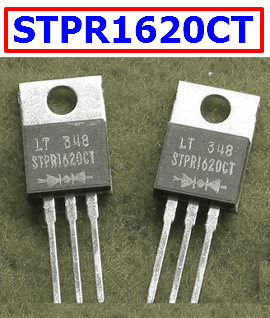

STPR1620CT datasheet diode

Description

Low cost dual center tap rectifier suited for Switched Mode Power Supplies and high
frequency DC to DC converters.

Pinout

STPR1620CT pinout

Features

1. SUITED FOR SMPS
2. LOW LOSSES
3. LOW FORWARD AND REVERSE RECOVERY TIME
4. HIGH SURGE CURRENT CAPABILITY



ABSOLUTE RATINGS (limiting values, per diode)

VRRM Repetitive peak reverse voltage 200 V
IF(RMS) RMS forward current 20 A



Ordering information

Ordering type Marking Package Weight Base qty Delivery mode
STPR1620CT STPR1620CT TO-220AB 2.23 g 50 Tube
STPR1620CG STPR1620CG D2PAK 1.48 g 50 Tube
STPR1620CG-TR STPR1620CG D2PAK 1.48 g 1000 Tape & reel
STPR1620CR STPR1620 I2PAK 1.49 g 50 Tube



STPR1620CT Datasheet
