T9AS5D22-48 Datasheet PDF – 1000mW, Industrial Relay

Part Number: T9AS5D22-48

Function: Industrial Relays (General Purpose)

Manufacturer: TE Connectivity

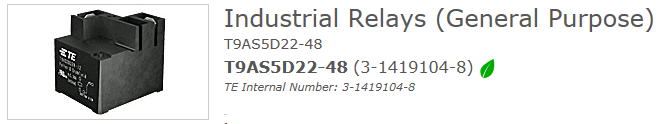

Image:

T9AS5D22-48 datasheet



Description

This is Power relay. Potter & Brumfield T9A, Power Relays, Standard, Monostable, DC, 1000 mW Coil Power Rating DC, 2304 Ω Coil Resistance, UL Coil Insulation Class F.

Features

1. T9A Series

2. Contact – Current Class = 10A to 20A Class, Greater Than 16A

3. Contact – Rated Current = 20 A

4. Terminal Type = PCB-THT, Quick Connect

5. Contact – Arrangement = 1 Form C (CO)

Official Homepage: https://www.te.com/usa-en/product-3-1419104-8.html

T9AS5D22-48 Datasheet PDF Download


T9AS5D22-48 pdf

Other data sheets are available within the file:
3-1419104-8,T9AS5D22-48
