RT8207 Datasheet – Power Supply Controller, Richtek ( PDF )

Posted on by pinout

Part Number: RT8207

Function: DDRII/DDRIII Memory Power Supply Controller / PWM Controller

Package: WQFN-20L type

Manufacturer: Richtek Technology

Pinouts:

RT8207 datasheet



Description

The RT8207 provides a complete power supply for both DDRII/DDRIII memory systems. It integrates a synchronous PWM buck controller with a 3A sink/source tracking linear regulator and a buffered low noise reference. The PWM controller provides the high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high-voltage batteries to generate low voltage chipset RAM supplies in notebook computers. The constant-on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns “instant-on” response to load transients while maintaining a relatively constant switching frequency.

Application circuit :

components

PWM Controller

Features

1. Resistor Programmable Current Limit by Low-Side RDS(ON) Sense
2. Quick Load-Step Response within 100ns
3. 1% VOUT Accuracy Over Line and Load
4. Fixed 1.8V (DDRII), 1.5V (DDRIII) or Adjustable 0.75V to 3.3V Output Range
5. Battery Input Range 2.5V to 26V
6. Resistor Programmable Frequency
7. Over/Under Voltage Protection
8. 4 Steps Current Limit During Soft-Start
9. Drives Large Synchronous-Rectifier FETs
10. Power-Good Indicator



Official Homepage: https://www.richtek.com/Products/



RT8207 Datasheet PDF Download


RT8207 pdf

Other data sheets are available within the file: RT-8207

RTD2270L Datasheet PDF – Display Controller

Posted on by pinout

This is a kind of Display Controller.

Part Number: RTD2270L

Function: Flat Panel Display Controller

Package: LQFP64 7×7

Manufacturer: Realtek Semiconductor

Image:

RTD2270L datasheet



Description

This is Flat Panel Display Controller.

Features

1. Embedded DDC with DDC1/2B/CI

2. Embedded one MCU with SPI flash controller.

3. Require only one crystal to generate all timing.

4. Programmable internal low-voltage-reset (LVR)

5. High resolution 6 channels PWM output, and wide range selectable PWM frequency.

6. Support input format up to FHD

7. Embedded BJT control circuit for 1.2V regulator replacement

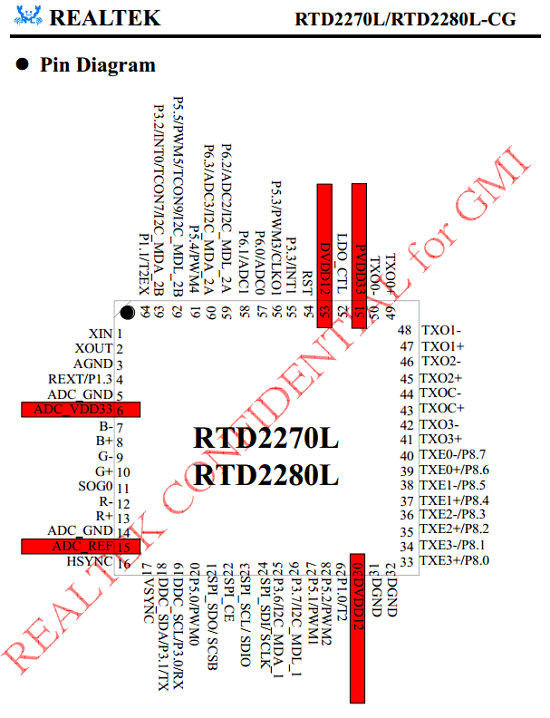

Pinout

components

Color Processor :

1. True 10 bits color processing engine

2. sRGB compliance

3. Advanced dithering logic for 18-bit panel color depth enhancement

4. Brightness and contrast control

5. Programmable 10-bit gamma support

Other data sheets are available within the file: RTD2270L-CG, RTD2280L, RTD2280L-CG

RTD2270L Datasheet PDF Download


RTD2270L pdf
