Part Number: FT5754M

Function: NPN Darlington Transistor Array

Package: ZIP 12 Pin Type

Manufacturer: Fujitsu

Image:

Description

The FT5754M is 150V, 100V, NPN Darlington Transistor Array.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 150 V
2. Collector to Emitter Voltage: Vceo = 100 V
3. Emitter to Base Voltage: Vebo = 5 V
4. Collector Current: Ic = 33 A
5. Total Dissipation : Pc = 2.3 W
6. Junction Temperature: Tj = 150°C
7. Storage Temperature: Tsg = -55 ~ +150°C

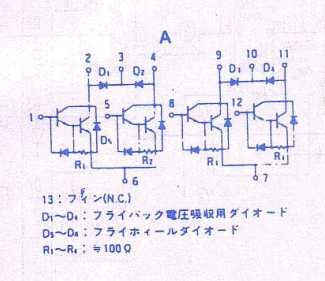

Block Diagram :

Ordering Information

Other data sheets are available within the file:

FT5753M, FT5753ML, FT5755M, FT5756M



FT5754M Datasheet PDF Download

Related articles across the web

• Choosing The Best Control Method
• General Purpose Photocoupler

Part Number: C4616

Function: 400V, 2A, Silicon NPN Transistor

Manufacturer: SANYO ( Panasonic )

Image and Pinouts:



Description

This is 400V, 2A, NPN Triple Diffused Planar Silicon Transistor.

Features

1. Large current capacity (IC=2A).

2. High breakdown voltage (VCEO≥400V).



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 400 V

2. Collector to Emitter Voltage: Vceo = 400 V

3. Emitter to Base Voltage: Vebo = 5 V

4. Collector Current: Ic = 2 A

5. Collector Dissipation : Pc = 1 W

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C





C4616 Datasheet PDF Download

Other data sheets are available within the file: 2SA1773, 2SC4616, A1773
