Part Number: SM5817

Function: 1A, 20V, SCHOTTKY BARRIER RECTIFIER

Pacakge : Melf SURFACE MOUNT Type

Manufacturer: Rectron Semiconductor

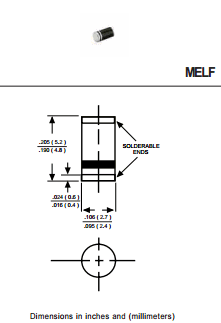

Image and Pinouts:



Description

This is 20V, 1A, Schottky Barrier Diode.

Features

1. Ideal for surface mounted applications

2. Low leakage current

3. Metallurgically bonded construction

4. Mounting position : Any

5. Weight : 0.015 gram



Absolute Maximum Ratings (Ta = 25°C)

1. Maximum Recurrent Peak Reverse Voltage : Vrrm = 20 V

2. Maximum RMS Voltage : Vrms = 14 V

3. Maximum DC Blocking Voltage : Vdc = 20 V

4. Maximum Average Forward Rectified Current : Io = 1 A
