Part Number: MMBZ5246BLT1

Marking : 8W

Function: Zener Voltage Regulators 225 mW

Package: SOT-23 Surface Mount

Manufacturer: ON Semiconductor

Image and Pinouts:

Description

This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables,and high density PC boards.

Features

1. 225 mW Rating on FR−4 or FR−5 Board

2. Zener Voltage Range −2.4 V to 91 V

3. Package Designed for Optimal Automated Board Assembly

4. Small Package Size for High Density Applications

5. ESD Rating of Class 3 (> 16 KV) per Human Body Model

6. SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

7. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*



MMBZ5246BLT1 Datasheet PDF Download

Other data sheets are available within the file:

MMBZ5234BLT1G, MMBZ5224BLT1G, MMBZ5255BLT1G

Part Number: MDD142-08N1

Function: 800V, High Power Diode Module

Manufacturer: IXYS CORPORATION

Pinouts:



Description

This is 800 Vrrm, 165 A, 1.3 Vf, High Power Diode Module.

Features

1. International standard package

2. Direct copper bonded Al2O3 -ceramic base plate

3. Planar passivated chips

4. Isolation voltage 3600 V~

5. UL registered, E 72873

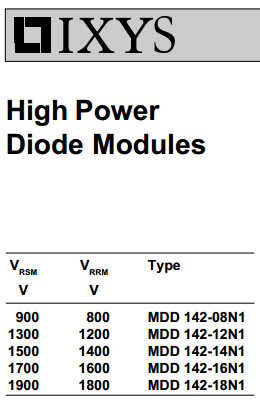

Ordering Informations :

Applications:

1. Supplies for DC power equipment

2. DC supply for PWM inverter

3. Field supply for DC motors

4. Battery DC power supplies

Advantages :

1. Space and weight savings

2. Simple mounting

3. Improved temperature and power cycling

4. Reduced protection circuits

MDD142-08N1 Datasheet PDF Download

Other data sheets are available within the file:

MDD142, MDD14208N1, MDD142-12N1, MDD142-14N1, MDD142-16N1
