TDA8842 Datasheet PDF – DIP 56, TV Processor – Philips

Part Number: TDA8842

Function: I2C-bus controlled PAL/NTSC/SECAM TV Processor

Package: S-DIP 56 Pin

Manufacturer: Philips Semiconductors


TDA8842 tv processor

Description

The various versions of the TDA8842 series are I2C-bus controlled single chip TV processors which are intended to be applied in PAL, NTSC, PAL/NTSC and multi-standard television receivers. The N2 version is pin and application compatible with the N1 version, however,a new feature has been added which makes the N2 more attractive. The IF PLL demodulator has been replaced by an alignment-free IF PLL demodulator with internal VCO (no tuned circuit required). The setting of the various frequencies (33.4, 33.9, 38, 38.9, 45,75 and 58.75 MHz) can be made via the I2C-bus.

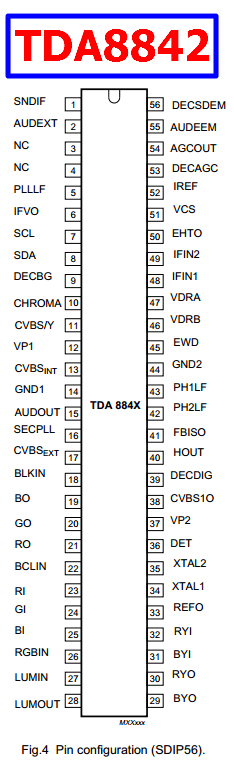

Pinout

TDA8842 datasheet pinout

Features

1. Multi-standard vision IF circuit with an alignment-free PLL demodulator without external components

2. Alignment-free multi-standard FM sound demodulator (4.5 MHz to 6.5 MHz)

3. Audio switch

4. Flexible source selection with CVBS switch and Y(CVBS)/C input so that a comb filter can be applied

5. Integrated chrominance trap circuit

6. Integrated luminance delay line

7. Asymmetrical peaking in the luminance channel with a (defeatable) noise coring function

Other data sheets are available within the file:

TDA8840, TDA8841, TDA8843, TDA8847, TDA8840H, TDA8841H, TDA8842H

TDA8842 Datasheet PDF
