Part Number: TICP106, TICP106D, TICP106M
Description
2A, Silicon Controlled Rectifier
Package: LP Type
Manufacturer: Power Innovations Limited
Image and Pinout:
Features
1. 2 A Continuous On-State Current
2. 15 A Surge-Current
3. Glass Passivated Wafer
4. 400 V to 600 V Off-State Voltage
5. Max I GT of 200 µA

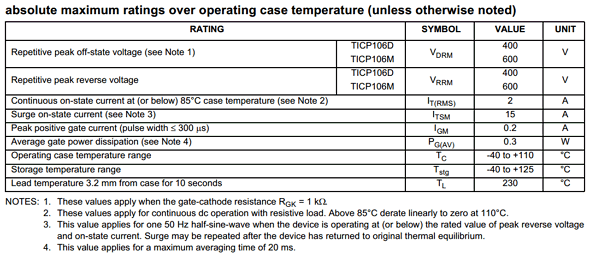

Absolute maximum ratings :
1. TICP106D : 400 V
2. TICP106M : 600 V
3. Continuous on-state current : 2A
4. Operating case temperature range : TC = -40 to +110 °C
5. Storage temperature range : Tstg = -40 to +125 °C
