TL071 Pinout – JFET-Input Operational Amplifier – TI

Part Number: TL071, TL071CP

Function : Low-Noise JFET-Input General-Purpose Operational Amplifier

Package: 8-Pin SOIC, PDIP, SO Type

Manufacturer: Texas Instruments


tl071-op-amp

Description

The TL071 JFET-input operational amplifier family is designed to offer a wider previously developed operational amplifier. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.

JFET-input operational amplifiers (op-amps) are a type of analog integrated circuit that use junction-field-effect transistors (JFETs) as the input stage. JFET-input op-amps are used in a variety of applications, including amplifier circuits, active filters, oscillators, and signal conditioning circuits.

One of the advantages of JFET-input op-amps is their high input impedance, which makes them well suited for use in circuits where the input signal is weak or where the input signal source has a high impedance. They also offer good common-mode rejection ratio and are relatively immune to input offset voltage changes

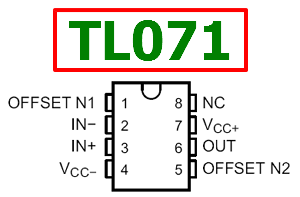

TL071 Pinout

tl071-pinout-datasheet



Features

1. Low Power Consumption

2. Wide Common-Mode and Differential Voltage Ranges

3. Low Input Bias and Offset Currents

4. Output Short-Circuit Protection

5. Low Total Harmonic Distortion: 0.003% Typical

Logic Symbos

tl071-logic-symbol

Homepage : https://www.ti.com/product/TL071

Applications:

1. Solar energy: string and central inverter

2. Motor drives: AC and servo drive control and power stage modules

3. Single phase online UPS

TL071 Datasheet PDF
