TPS62230 Datasheet PDF – Step Down Converter

Part Number: TPS62230

Function: 2 MHz / 3 MHz Ultra Small Step Down Converter

Package: 1×1.5 SON 6 Pin Type

Manufacturer: Texas Instruments

Pinouts:

TPS62230 datasheet



Description

The TPS62230, TPS6223X device family is a high frequency synchronous step down DC-DC converter optimized for battery powered portable applications. It supports up to 500mA output current and allows the use of tiny and low cost chip inductors and capacitors.

With a wide input voltage range of 2.05V to 6V the device supports applications powered by Li-Ion batteries with extended voltage range. The minimum input voltage of 2.05V allows as well the operation from Li-primary or two alkaline batteries. Different fixed output voltage versions are available from 1.0V to 3.3V.

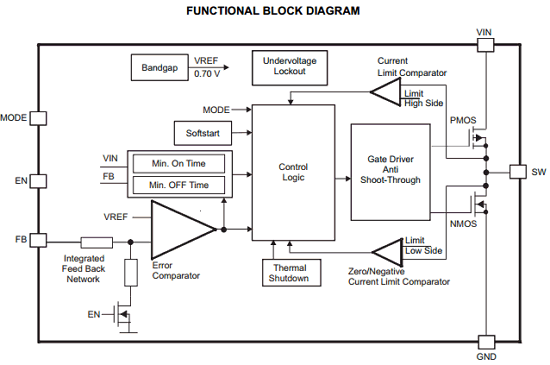

Block Diagram :

components

Features

1. 2 MHz / 3 MHz Switching Frequency

2. Up to 94% Efficiency

3. Output Peak Current up to 500 mA

4. Operating Junction Temperature of –40°C to 125°C

5. High PSRR (up to 90 dB)

6. Small External Output Filter Components 1 µH and 4.7 µF



TPS62230 Datasheet PDF Download


TPS62230 pdf

Other data sheets are available within the file:

TPS62230DRYR, TPS62230DRYT, TPS62231, TPS622310
