P75NF758 Datasheet – 75V, 80A, N-Ch MOSFET – ST

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: P75NF758, P75NF75B, Correct PN : STP75NF75

Function: N-channel Power MOSFET ( 75V, 80A )

Package: TO-220 Type

Manufacturer: STMicroelectronics


P75NF758 mosfet

Description

This is N-channel, 75V, 0.0095Ω, 80A, STripFET II Power MOSFET.

This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high efficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications. It is also intended for any applications with low gate drive requirements.

Image and Pinout:

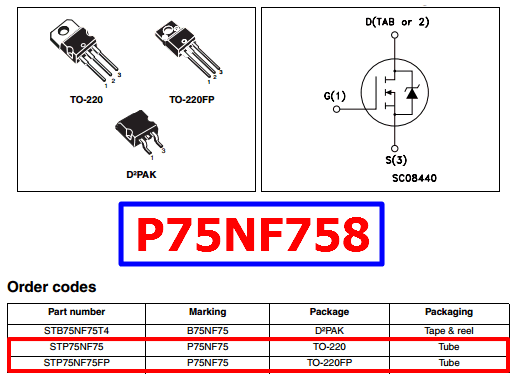

P75NF758 datasheet pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 75 V
2. Gate to source voltage: VGSS = ± 20 V
3. Drain current: ID = 80 A
4. Channel temperature: Tch = 150 °C
5. Storage temperature: Tstg = -55 to +175 °C



Applications

1. Switching application

P75NF758 Datasheet
