TWH8778 Datasheet PDF – Power Driver Switch

Part Number: TWH8778

Function: Power Driver Switch

Package: TO-220-5 Pin

Manufacturer: Unspecified

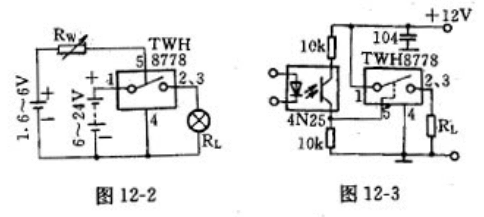

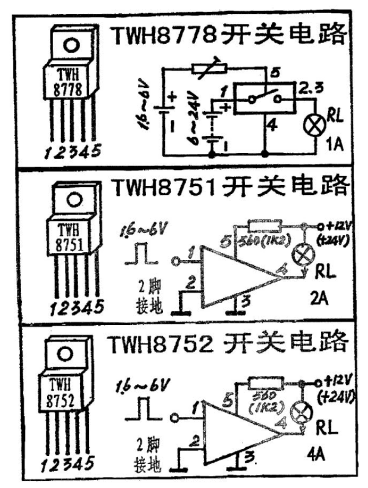

Image and Pinouts:

TWH8778 datasheet



The TWH8778 is a low voltage, small current controlled switching device.


1. Overvoltage Protection : Typical 30v Max 40

2. Minimum input voltage: typical 3v

3. Maximum input voltage: 30v

4. Control terminal maximum voltage; 6v

5. Delay time: 8 microseconds typical, 20 microseconds maximum

6. Control terminal turn-on voltage: 1.6 -2 v

7. Output Limit Current: Min: 0.55v Typical: 0.8v Max 1v

8. Switching voltage drop: 300 mV typical, 500 mV maximum



Other data sheets are available within the file:

TWH8751, TWH8752


TWH8778 Datasheet PDF Download

TWH8778 pdf
