US18650GR Datasheet – 2550mAh Laptop Battery Cell – Sony

This is one of the Battery Cell types.

Part Number: US18650GR

Function: Sony 3.79V, 2550mAh Laptop Battery Cell

Manufacturer: SONY SEMICONDUCTOR

See the preview image and the PDF file for more information.

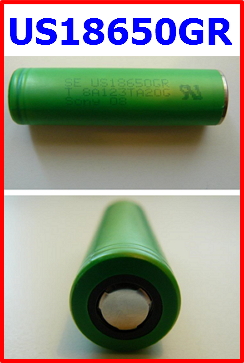

Image :

US18650GR datasheet sony



Description

Sony US18650GR 3.79V (as received)  93mOhm,  This Sony cell is a bit of a departure for me – IMR cells aside – as it is obviously a bare laptop cell, or possibly for power tool use, and has not been converted in any way for use in lights. So no protection circuit, no button, no aftermarket wrapping, and the stock wrap does not extend to the bottom of the cell. It is common for cells that are intended for use in packs to have an entirely bare base in order to make welding/soldering the cells together easier to do.

US18650GR Spec
Initial voltage on receipt 3.79V
Measured length 65.01mm
Measured width (max) 18.30mm
Weight 46.42grams
Internal resistance at initial voltage 93mOhm
Capacity from initial voltage down to 3.00V @ 0.5A 1148mAh
Internal resistance after storage charge 99mOhm
Capacity from 4.2V down to 3V @ 0.5A 2421mAh
Capacity from 4.2V down to 3V @ 1.0A 2346mAh
Capacity from 4.2V down to 3V @ 3.0A 2345mAh
Capacity from 4.2V down to 3V @ 5.0A 2291mAh

US18650GR Datasheet

US18650GR pdf
