Part Number: 15N03H
Function: N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Package: TO-252 Type
Manufacturer: Advanced Power Electronics Corp

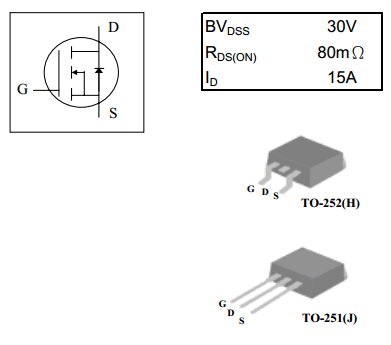

Image and Pinouts:
Description
The TO-252 package is universally preferred for all commercial industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP15N03J) is available for low-profile applications.
Pinouts:
Features
1. Low Gate Charge
2. Simple Drive Requirement
3. Fast Switching
Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage: VDSS = 30 V
2. Gate to source voltage: VGSS = ± 20 V
3. Drain current: ID = 15 A
4. Total Power Dissipation: Pd = 28 W
5. Channel temperature: Tch = 150 °C
6. Storage temperature: Tstg = -55 to +150 °C
Other data sheets are available within the file: AP15N03H, AP15N03J
