2SD1157 Transistor – 50V, 4A, NPN ( Datasheet PDF )

Part Number: 2SD1157

Function: 50V, 4A, NPN, Transistor

Package: TO-220AB Type

Manufacturer: Fuji Electric

Image and Pinouts:

2SD1157 datasheet



Description

This is NPN Transistor.

Features

1. High speed switching

2. High D.C. current gain

3. Low saturation voltage

4. High reliability

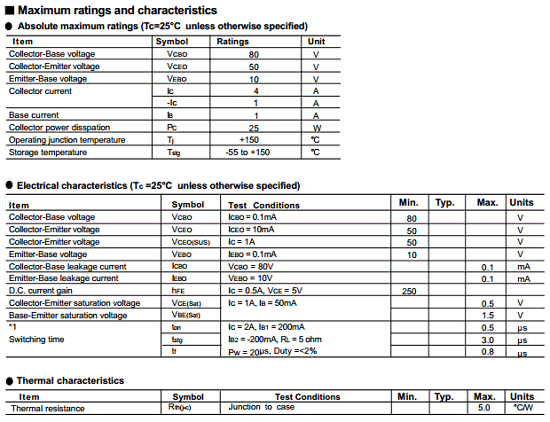

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 80 V
2. Collector to Emitter Voltage: Vceo = 50 V
3. Emitter to Base Voltage: Vebo = 10 V
4. Collector Current: Ic = 4 A
5. Collector Dissipation : Pc = 25 W
6. Junction Temperature: Tj = 150°C
7. Storage Temperature: Tsg = -55 ~ +150°C

components

Applications:

1. HIGH SPEED SWITCHING

2SD1157 Datasheet PDF Download

2SD1157 pdf


Other data sheets are available within the file: D1157
