40T03GH Datasheet – BVdss=30V, Id=28A, MOSFET – APEC

Part Number: AP40T03GH,  Marking : 40T03GH, 40TO3GH, 4OT03GH, 4OTO3GH

Function : N-CHANNEL 30V, 25m Ohm, 28A POWER MOSFET

Package: TO-252(H), TO-251(J) Type

Manufacturer: ADVANCED POWER ELECTRONICS CORP

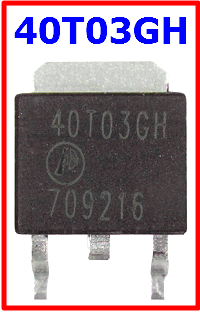

40T03GH mosfet

Description

Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-252 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP40T03GJ) are available for low-profile applications.

Features

1. Simple Drive Requirement
2. Low Gate Charge
3. Fast Switching



Pinout

40T03GH datasheet pdf

Absolute Maximum Ratings

1. Drain-Source Voltage : VDS = 30  V
2. Gate-Source Voltage : VGS = +25 :  V
3. Continuous Drain Current, VGS@ 10V : ID@TC=25’C = 28 A
4. Continuous Drain Current, VGS@ 10V : ID@TC=100’C = 24 A
5. Pulsed Drain Current : IDM = 95 A
6. Total Power Dissipation : PD@TC=25’C =  31.25 W

40T03GH Datasheet
