This is one of the OP AMP types.
Part Number: 4558, JRC4558
Function: Dual Operational Amplifier
Package: DIP, SIP, SOP 8 Type
Manufacturer: New Japan Radio

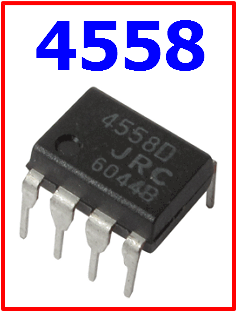

See the preview image and the PDF file for more information.
Description
The NJM4558, 4558 integrated circuit is a dual high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process. Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics. Excellent channel separation allows the use of the dual device in single NJM741 operational amplifier applications providing density. It is especially well suited for applications in differential-in, differential-out as well as in potentiometric amplifiers and where gain and phase matched channels are mandatory.
4558 Pinout
1. A OUTPUT
2. A – INPUT
3. A +INPUT
4. V-
5. B +INPUT
6. B – INPUT
7. B OUTPUT
8. V+
Features
1. Operating Voltage
2. High Voltage Gain : 100dB typ
3. High Input Resistance : 5MΩ typ.
4. Bipolar Technology
5. Package Outline
4558 Datasheet
Other data sheets are available within the file: JRC4558A, JRC4558N
