8002 Datasheet PDF – 2.0 Watt Audio Power Amplifier

Part Number: 8002

Function: 2.0 Watt Audio Power Amplifier

Package : SOP 8  Pin Type

Manufacturer: Income Technoloty

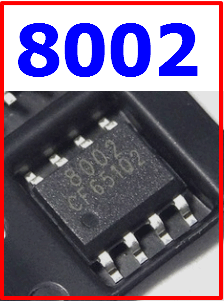

8002-audio-power-amplifier



Description

The 8002 is a Class-AB audio power amplifier. It is capable of delivering 2.0 watts of continuous average power to an 4Ω BTL load with less than 10% distortion (THD+N) from a 5VDC power supply, or 1.5 watts continuous average power to an 8 Ω BTL load with less than 1% distortion.

The 8002 is designed specifically to provide high quality output power with a minimal amount of external components. It does not require output coupling capacitors or bootstrap capacitors. The 8002 is ideally suited for audio speakers and other low voltage applications.



Pinout

8002-datasheet-pinout

Features

1. Improved PSRR at 217 Hz & 1 KHz 60 dB

2. Power output at 5.0V, 10% THD+N, 4 Ohm 2.0 W (typ.)

3. Power output at 5.0V, 1% THD+N, 8Ohm 1.5 W (typ.)

4. 2.2V – 5.5V operation

5. Improved circuitry eliminates pop-click noise during turn-on and turn-off transitions

6. No output coupling capacitors, snubber networks or bootstrap capacitors required

7. Unity-gain stable

8. External gain configuration capability



Applications

1. Portable computers

2. Desktop computers

3. Low voltage audio systems

8002 Datasheet PDF
