85U03GH Datasheet PDF – 30V, 75A, N-Ch, MOSFET – APEC

Part Number: AP85U03GH, Marking : 85U03GH

Funtion : 30V, 75A, N-Channel MOSFET

Package: TO-252(H) Type

Manufacturer: Advanced Power Electronics Corp


85U03GH power mosfet

Description

This is 30V, 75A, N-Channel Enhancement Mode Power MOSFET.

Advanced Power MOSFETs from APEC provide thedesigner with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.

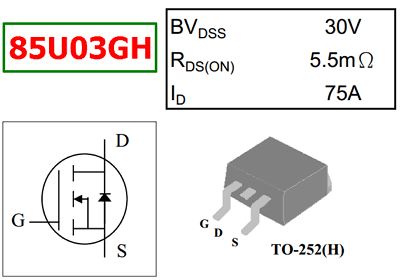

Pinout:

85U03GH datasheet pdf

Features

1. Low On-resistance
2. Simple Drive Requirement
3. Fast Switching Characteristic

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 30 V
2. Gate to source voltage: VGSS = ± 20 V
3. Drain current: ID = 75 A
4. Total Power Dissipation: Pd = 60 W
5. Channel temperature: Tch = 175 °C
6. Storage temperature: Tstg = -55 to +175 °C



85U03GH Datasheet
