AD8155 Datasheet – XStream 6.5 Gbps Dual Buffer Mux/Demux

Part Number: AD8155

Function: XStream 6.5 Gbps Dual Buffer Mux/Demux

Package: 64-lead LFCSP Type

Manufacturer: Analog Devices

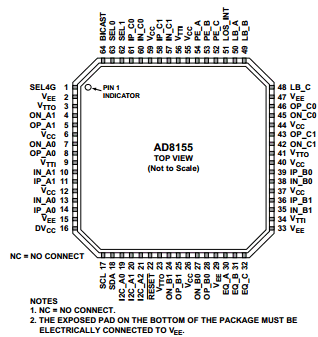

AD8155 datasheet


The AD8155 is an asynchronous, protocol-agnostic, dual-lane 2:1 switch with a total of six differential CML inputs and six differential CML outputs. The signal path supports NRZ signaling with data rates up to 6.5 Gbps per lane. Each lane offers programmable receive equalization, programmable output preemphasis, programmable output levels, and loss-of signal detection.

Dual 2:1 mux/1:2 demux
Optimized for dc to 6.5 Gbps NRZ data
Per-lane P/N pair inversion for routing ease
Programmable input equalization
 Compensates up to 40 inches of FR4
Loss-of-signal detection
Programmable output preemphasis up to 12 dB
Programmable output levels with squelch and disable
Accepts ac-coupled or dc-coupled differential CML inputs
50 Ω on-chip termination
1:2 demux supports unicast or bicast operation
Port-level loopback
Port or single lane switching
1.8 V to 3.3 V flexible core supply
User-settable I/O supply from VCCto 1.2 V
Low power, typically 2.0 W in basic configuration
64-lead LFCSP
−40°C to +85°C operating temperature range
Low cost redundancy switch
SONET OC48/SDH16 and lower data rates
RXAUI, 4× Fibre Channel, Infiniband, and GbE over
OIF CEI 6.25 Gbps over backplane
Serial data-level shift
2-/4-/6-lane equalizers or redrivers

VCC= VTTI= VTTO= 1.8 V, DVCC= 3.3 V, VEE= 0 V, RL= 50 Ω, basic configuration, data rate = 6.5 Gbps, data pattern = PRBS7, ac-coupled inputs and outputs, differential input swing = 800 mV p-p, TA= 25°C, unless otherwise noted.

Other data sheets are available within the file: AD8155-EVALZ, AD8155ACPZ, AD8155ACPZ-R7
