What is BC337?
It is a popular general-purpose NPN transistor commonly used in electronic circuits for amplification and switching purposes. It has a maximum current rating of 0.8 A and a maximum voltage rating of 45 V. The transistor has a high current gain, making it suitable for low-level signal amplification. The BC337 is housed in a TO-92 package, which makes it easy to use in various electronic projects.
Part Number: BC337
Function: 45V, 0.8A, NPN Silicon Amplifier Transistor
Package: TO-92 Type
Manufacturer: ON Semiconductor

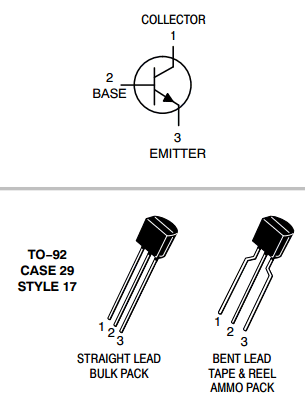

Pinout
Advantages Vs Disadvantages
Advantages:
1. It is a low-cost transistor that is widely available and easy to use in various electronic projects.
2. The transistor has a high current gain, which makes it suitable for low-level signal amplification and other applications where high gain is needed.
3. The TO-92 package makes the BC337 easy to use in various electronic circuits.
Disadvantages:
1. The maximum voltage rating of 45 V may not be sufficient for some high-voltage applications.
2. The maximum current rating of 800 mA may not be sufficient for some high-current applications.
3. The BC337 is a bipolar junction transistor (BJT) and may not be suitable for some high-frequency applications that require a field-effect transistor (FET).
BC337 Datasheet PDF
Part numbers of commonly used NPN transistors
(1) BC547 – NPN general-purpose transistor ( 45V, 100mA )
(2) BC337 – NPN general-purpose transistor
(3) 2N2222 – NPN switching transistor ( 40V, 0.5A )
(4) 2N3904 – NPN general-purpose transistor
(5) PN2222 – NPN small signal transistor
(6) MPSA42 – NPN high-voltage transistor for switching and amplifier applications
(7) TIP120 – NPN Darlington transistor for high current applications
FAQs:
Q: What is the main difference between an NPN and PNP transistor?
A: The main difference between an NPN and PNP transistor is the direction of current flow in their base, emitter, and collector regions.
Q: Which type of transistor is more commonly used?
A: NPN transistors are more commonly used because they are easier to manufacture and have better performance characteristics than PNP transistors.
Q: What are some applications of NPN and PNP transistors?
A: NPN and PNP transistors are used in a wide range of electronic devices, including amplifiers, switches, oscillators, and voltage regulators.
Datasheet Download : https://www.onsemi.com/pub_link/Collateral/BC337-D.PDF
