BU3150 Datasheet PDF – 800V, 3A, NPN Transistor

Part Number: BU3150

Function: 800V, 3A, NPN Transistor

Package: TO-220 Type

Manufacturer: ShenZhen Jingdao Electronic

Image:

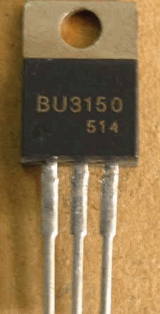

BU3150 datasheet



Description

This is NPN Bipolar Junction Transistor.

Features

1. High voltage capability
2. Features of good high temperature
3. High switching speed

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo =1100 V
2. Collector to Emitter Voltage: Vceo = 800 V
3. Emitter to Base Voltage: Vebo = 9 V
4. Collector Current: Ic =3 A
5. Total Dissipation : Pc = 50 W
6. Junction Temperature: Tj = 150°C
7. Storage Temperature: Tsg = -55 ~ +150°C

Pinout

components

Applications

1. Computer aided power
2. Switch-mode power supply



BU3150 Datasheet PDF Download


BU3150 pdf
